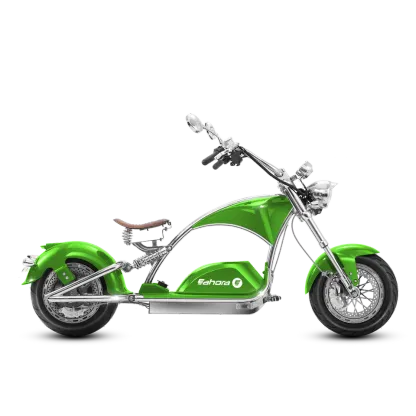

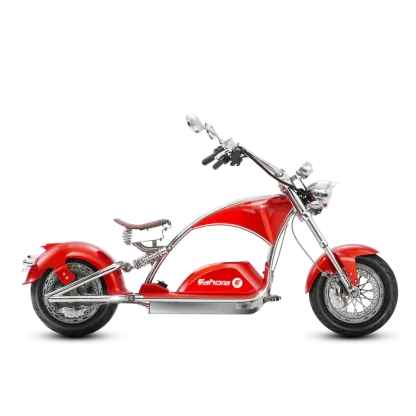

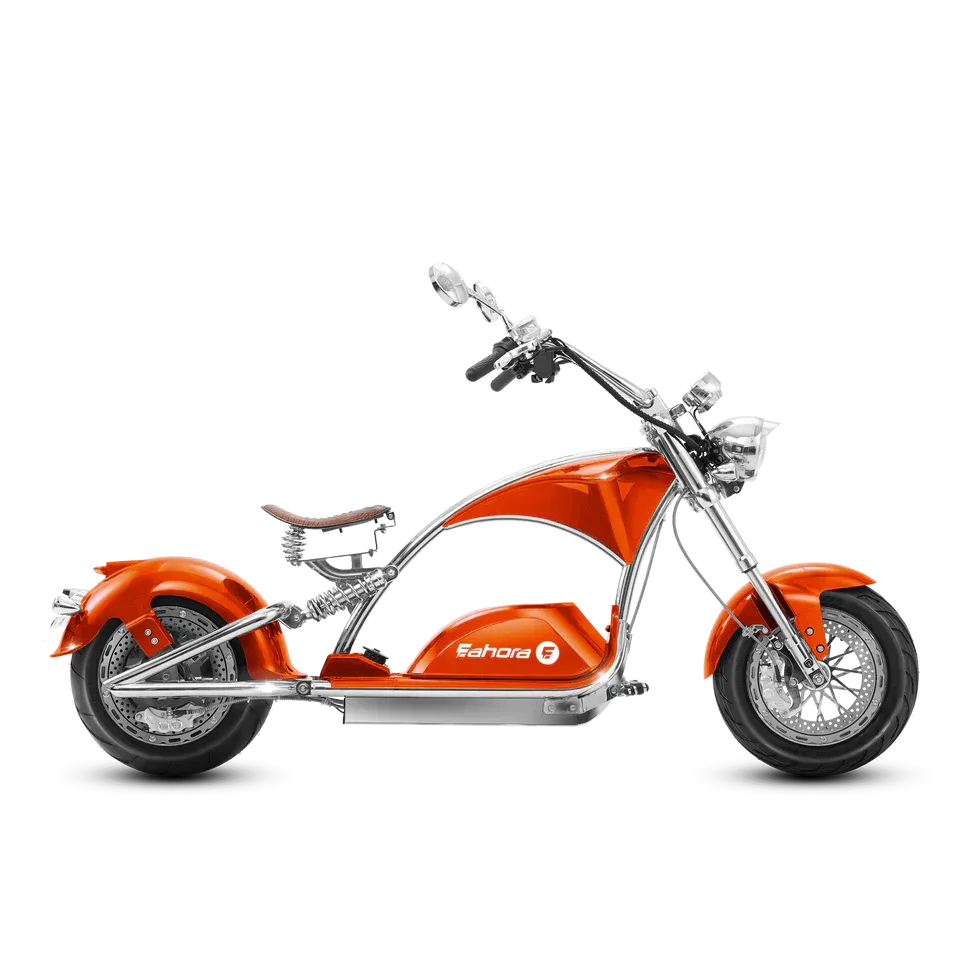

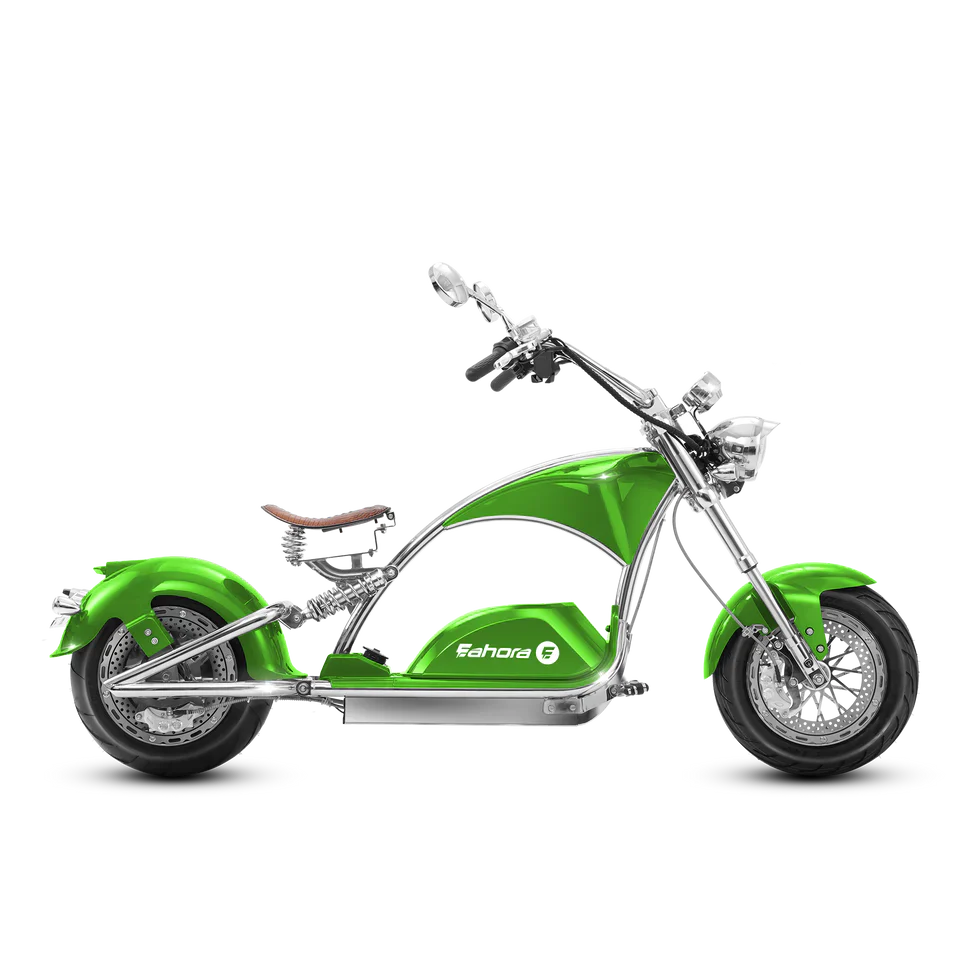

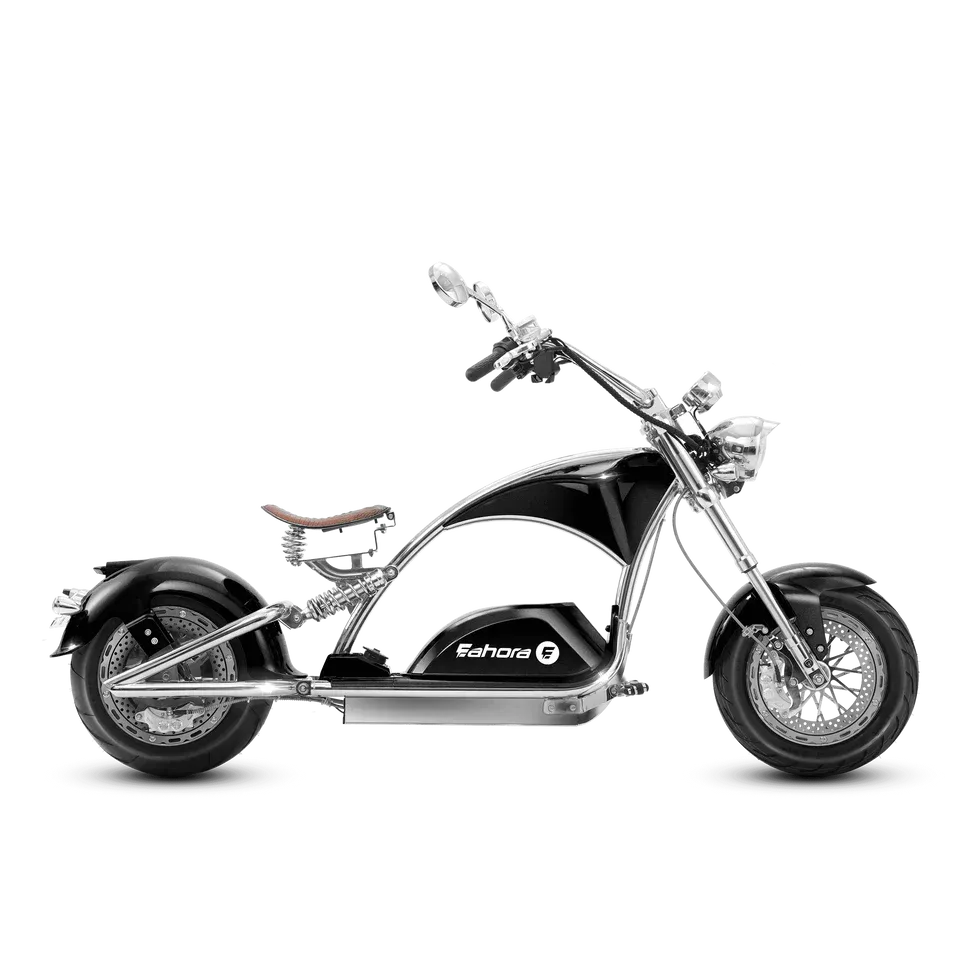

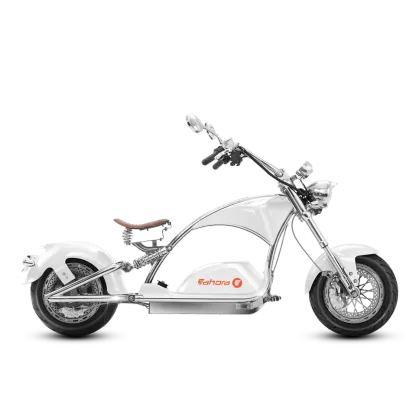

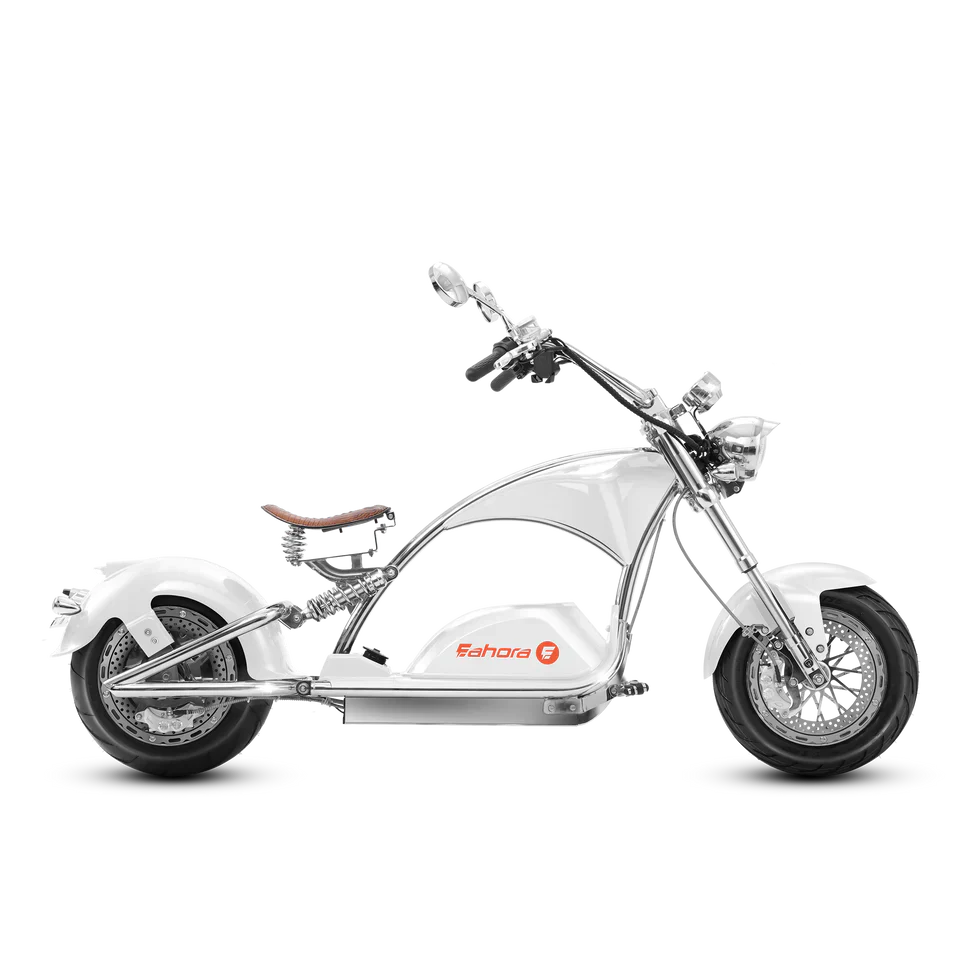

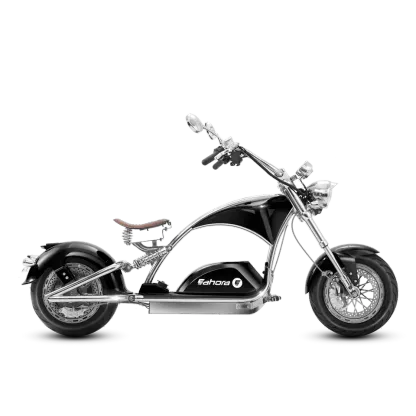

Eahora Chrome 4000W M1PS
EAHORA CHROME M1P
Chrome M1PS, the upmarket scooter of Eahora, has the perfect combination of top crafting systems, forward-looking design, and apex performance, bringing users the pinnacle of luxury driving. Feel unstoppable with its 4000W motor and Samsung battery providing ultra-high energy density. With a spirit of exploration and a fearless attitude, Chrome M1PS is here to help make your new life electric. Step into the future with an open mind and prepare yourself for something revolutionary!
ELECTRONICS
| Battery | 60V/30AH lithium battery(1800 WH), 35+ miles depends on the speed. | Charger | 67.2V~4A quick charger, fully charged with 4-6 hours |
| Controller | 60V/55A Integrated controller | Display | Motor-style LCD with charge indicator, speedometer, odometer, trip odometer, throttle gear level, and more. |
| Motor | 4000W Brushless DC Geared Motor with 124 NM max motor torque, up to 34-37MPH(max speed). Motor brand: QS motor. | Lights | Front: Oversized headlight with turn light Rear: Integrated taillight on the fender with brake light, direction indicator. |
| Throttle | Three levels gear throttle in the default. Can be adjusted to 5 levels. Speed can be reduced by changing the speed limit setting. | Kickstand | Electric cut off when putting the kickstand down |
E-SCOOTER COMPONENTS
| Tires | 12" straight grain vacuum tubeless tires | Fenders | Made of AB material. |
| Brakes | Front and Rear Hydraulic disc brakes | Frame | Seamless iron alloy pipe |
| Front Suspension | Hydraulic shock Fork | Rear Suspension | Spring steel shock |
| Saddle | Straight grain leather seat | Footrest | Foldable |
GEOMETRY
| Seat Height | 24.8" | Handlebar Height | 30.3" |
| Total Length | 83.5" | Handlebar Width | 33.5'' |
| Rear Suspension Length | 9.6'' | Footrest Size | 4.9'' * 5.7'' |
| Kickstand Length | 6.7'' | Controller Size | 6.8'' * 3.7'' |
| Front Brake Hose | 1100mm | Rear Brake Hose | 2250mm |
| Rear Registration Plate Size | 5.7'' * 4.92'' | Hydraulic Reservoir | 24ml |
| Gradeability | 30° | Tire Pressure | Front: 250 kPa Rear: 250 kPa (Note: The tire pressure must not exceed 250 kPa) |
| Gross Weight | 203 lbs | Net Weight | 178 lbs |
| Maxload | 440 lbs | Recommend Rider Height | Over 4'6'' |
KEY FEATURES
12" ALUMINUM HUB TUBELESS TIRES
With better seal and stability, tubeless tires can reduce the risk of puncture. Widen and thicker bead design to ensure that the tubeless tires are not easy to burst and protect the rim.
KICKSTAND WITH ELECTRIC CUT OFF
Automatic power-off kickstand eliminates any accidents caused by not turning off the power.
60V/55A INTEGRATED CONTROLLER
Possess a good level of stability in power supply cotrol and high current output capability.
HYDRAULIC BRAKES
More durable hydraulic brake to make it evenly stressed, reduce friction, and lesser chances of failure of the brake system.
FULL SUSPENSION WITH REAR PROGRESSIVE SPRINGS
Equipped with full suspension.
Progressive springs being softer during smaller bumps and preventing bottoming out by becoming firmer when compressing.
FOLDABLE FOOTREST
Need to fold manually. Additional fodable footrest support your feet in the extended posture.
FRONT AND REAR LIGHT
60V Headlight is bright enough to illuminate any road in night.
Integrated brake taillight placed on the fender.
COMFORT FOAM CUSHIONED SEAT
High-density foam filling can dampen shock and vibration, making it supremely qualified for long-term riding. Get rid of sudden bumps and realize freedom of riding.
All Ebike Market Place LEV's,E-bike,and E-Motorcycles have a governor top speed of 46 km/h (or 28 mph) to ensure best longevity of the complete Electric Vehicle system but this can be modified per customer request.
Shipping info
Support local pick up in Las Vegas Warehouse.
- Test ride available;
- Free assembly service;
- Package size: 76" * 15" * 31";（72" * 15" * 34")
- Package Weight: 203 lbs, 213lbs.
Accessories included:
1 x Charger;
1 x Tool kit;
1 x Manual;
1 x Front fender;
1 x Rear fender with integrated direction indicator and brake light;
1 x Phone holder with USB port;
2 x Reflective warning strips attached to fork;
A pair of rearview mirrors.
